Occupancy sensor HABITO HF36-W

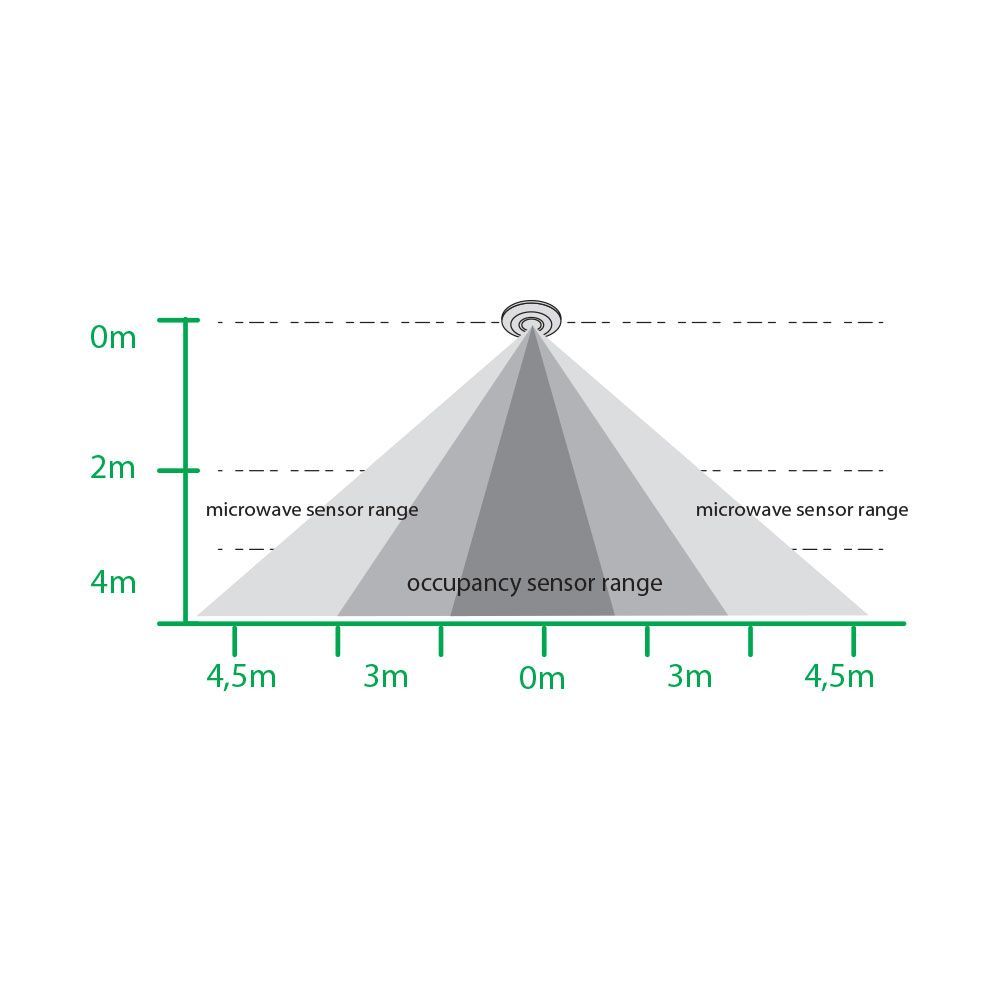

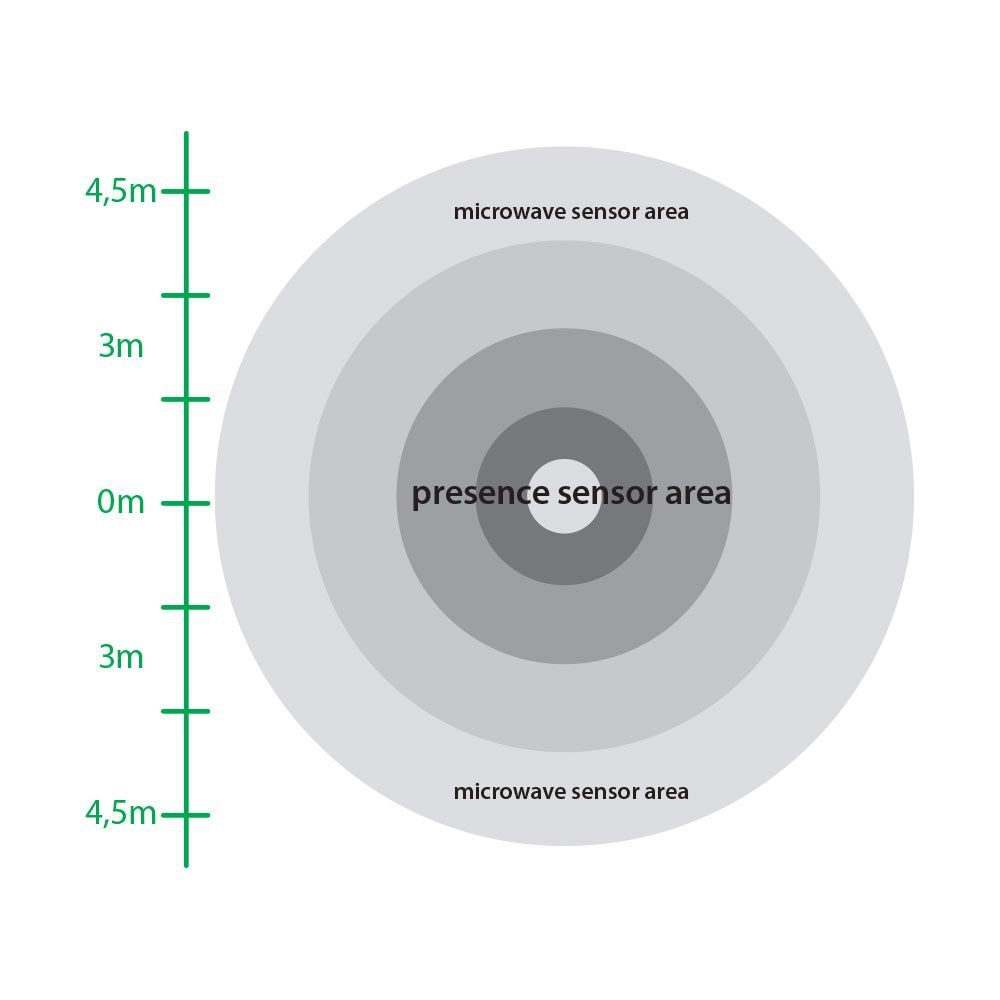

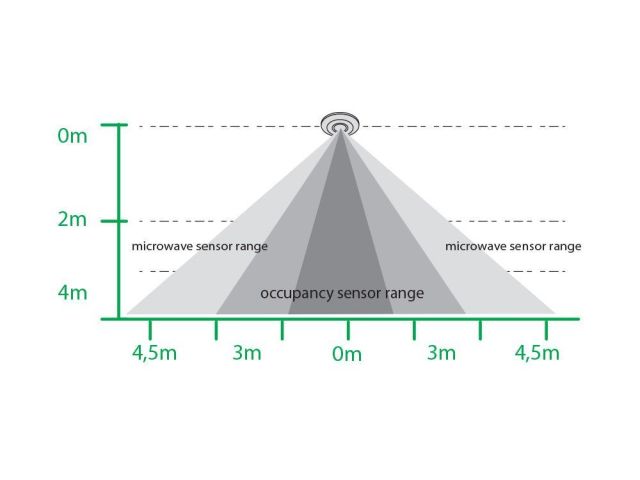

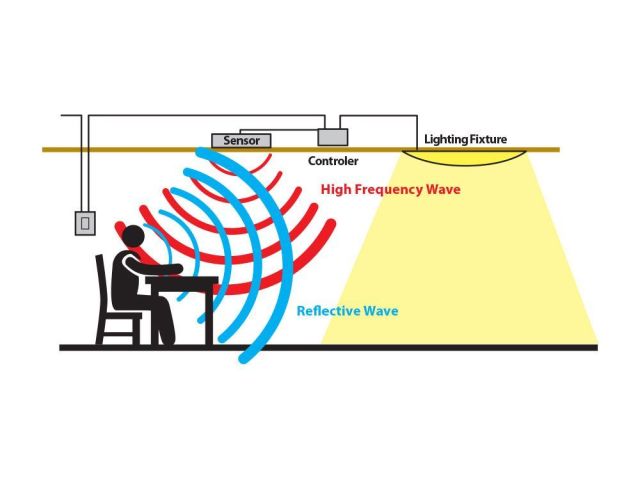

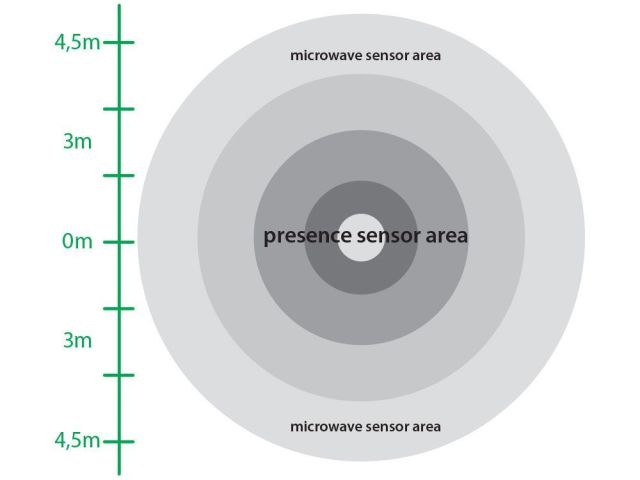

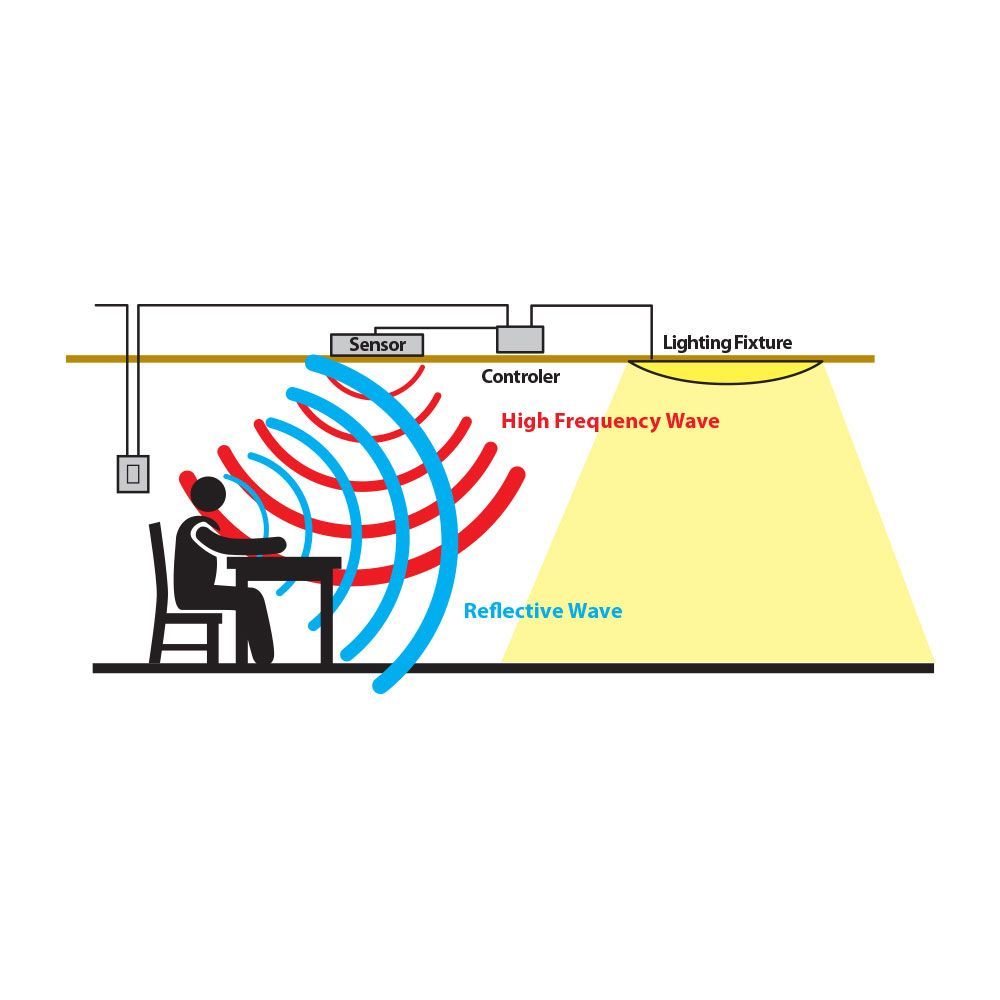

When light is needed in a certain area for the time when there are people there, the best solution is to install a genuine presence sensor HABITO HF36-W by VIVALUX. It emits high-frequency ultrasonic waves that create a 3-meter radius field within the sensor's range, representing its area of action as a presence sensor.
When there is movement in the thus created field, the HABITO HF36-W sensor is activated and turns on the light sources connected to it. It detects human inhalation and thus keeps the area lit. Beyond the presence area to the end of the range of the HABITO HF36-W, it works as a microwave motion sensor.
The HABITO HF36-W sensor is designed for external installation and this makes it suitable for use in rooms with a variety of ceiling constructions.
There are 2 sliders on the housing of the HABITO HF36-W, through which its operation can be adjusted according to the place of installation and the needs of light. The LUX slider controls the sensor's sensitivity to ambient light: from 3 to 2000lux. The TIME slider is used to select the hold time (from 10sec±3sec to 12min±1min), i.e. how long to light the controlled light source once the HABITO HF36-W detects a signal in its range. The hold is superimposed: if the sensor detects a new signal before the selected hold time has elapsed, it starts running again from the time of detection.
Main advantages
- A convenient and practical solution for long-term lighting of rooms and areas during the time when people are present in them.
- High motion detection sensitivity.
- Easy adjustment of sensor operation.
- 1000W is the maximum LED load the sensor can handle.
